XP581 4-in-1 Fully Regulated Power Supply Unit - Stable Voltage for Electronics Testing, DIY Projects & Lab Equipment Power

Product Description

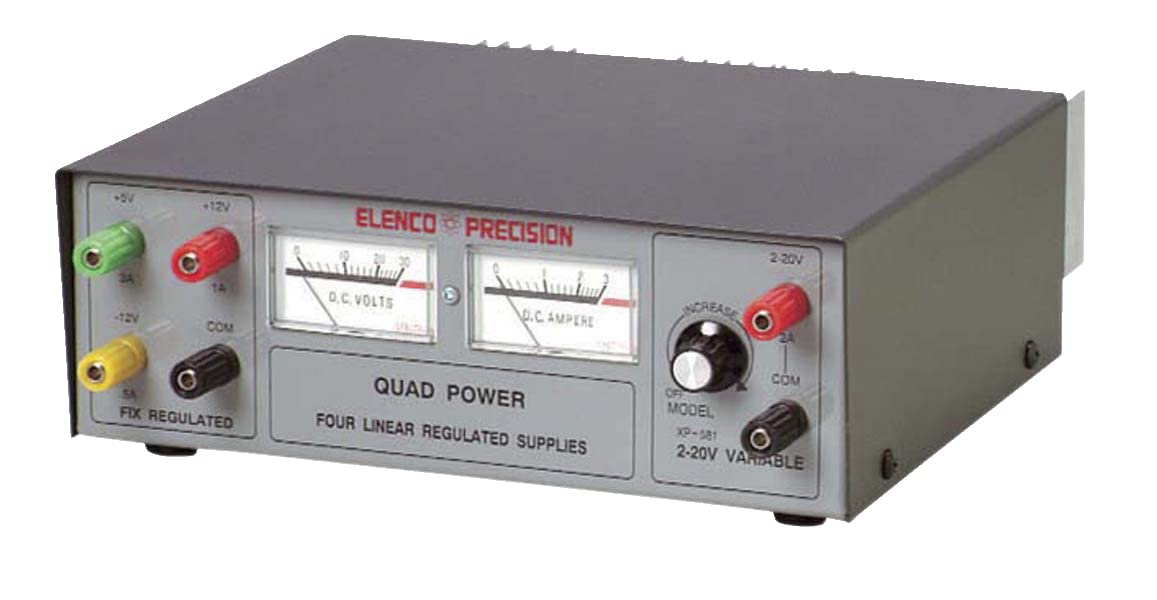

Quad Power The Quad XP-581 from Elenco provides four separate, fully regulated power supplies. Three are fixed and yield +5 VDC at 3 amps, -12 VDC at 1 amp, or +12 VDC at 1 amp. The fourth supply is variable, producing 2.5 to 20 volts of DC output at up to 2 amps. Line and output voltages are regulated to within 0.05 volts, and the supply is linear. All four supplies are shortproof as well. A current foldback circuit in each supply collapses the field in the event of a short, a current surge from the line, or an excessive current demand. Thus, both the Quad XP-580 and the equipment it's driving are normally protected from inadvertent errors or power company problems. Elenco built the supply as only Elenco will. The handsome, hooded metal case, - measuring 3-1/4" x 8-1/4" x 9-1/4" and weighing nine pounds - has a 3-wire grounded power cord for 115 VAC operation, panel meters for both current and voltage, and standard jacks for accessing the four regulated supplies. A two-year limited warranty and schematic is also included.
